用C#实现一个简易的Mips汇编器，咳咳，该汇编器不支持外部文件引入，目前只支持数据段（.data）、代码段（.text），话不多说，我们直接看怎么实现。
另外，本汇编器为本人大二下的MipsCpu实验一部分，实为不易，转载还望标明出处。

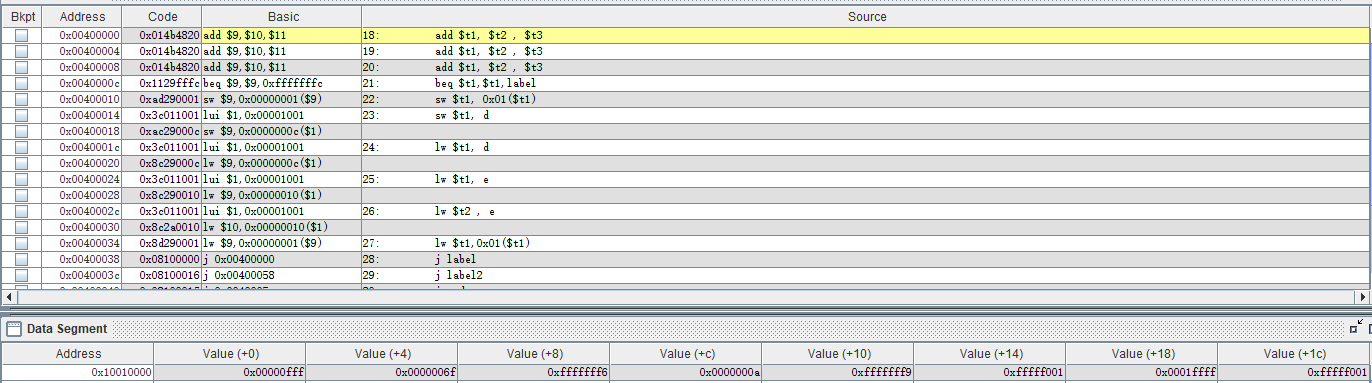

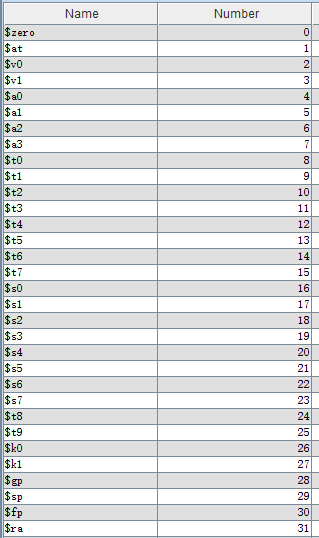

Mips31个寄存器

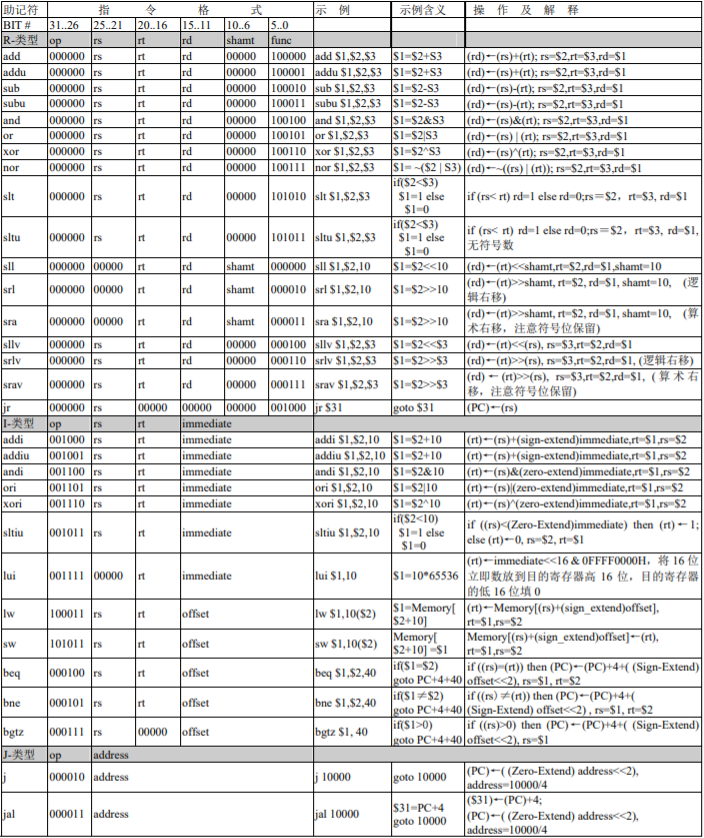

Mips指令入门
Mips内存安排
C#实现
项目结构
Token.cs，定义Mips汇编语言的Token
using System;using System.Collections.Generic;using System.Text;namespace AssembleHelper{ //变量 public class Var { public string Name { get; set; } public string InitVal { get; set; } public BaseType Type { get; set; } public string Addr { get; set; } } //标号 public class Label { public string Name { get; set; } public string Address { get; set; } } //数据类型 public enum BaseType { WORD, BYTE } //Mips Instrcution public enum Instrcution { //RType add, addu, sub, subu, and, or, xor, nor, slt, sltu, sll, srl, sra, sllv, srlv, srav, jr, //IType addi, addiu, andi, ori, xori, sltiu, lui, lw, sw, beq, bne, bgtz, //JType j, jal } //寄存器 public enum Register { zero, at, v0, v1, a0, a1, a2, a3, t0, t1, t2, t3, t4, t5, t6, t7, s0, s1, s2, s3, s4, s5, s6, s7, t8, t9, k0, k1, gp, sp, fp, ra }} ConvertHelper.cs，作为进制转换类，帮助我们处理进制转换
using System;using System.Collections.Generic;using System.Linq;using System.Text;namespace AssembleHelper{ public static class ConvertHelper { /// /// 把十进制、八进制、十六进制数转化为length位的16进制数 /// /// 字符型整数 /// Hex位数 /// negBinaryCode = binaryCode.ToList(); int index = -1; string hex = ""; for (int i = negBinaryCode.Count - 1; i >= 0; i--) { if (negBinaryCode[i] == '1') { index = i; break; } } for (int i = index - 1; i >= 0; i--) { if (binaryCode[i] == '1') { negBinaryCode[i] = '0'; } else { negBinaryCode[i] = '1'; } } for (int i = negBinaryCode.Count - 1; i >= 0; i--) { hex = hex.Insert(0, negBinaryCode[i].ToString()); } return hex; } //16进制Char字符转化为二进制 public static string HexToBinary(char hex) { string binary = ""; switch (hex) { case '0': binary = "0000"; break; case '1': binary = "0001"; break; case '2': binary = "0010"; break; case '3': binary = "0011"; break; case '4': binary = "0100"; break; case '5': binary = "0101"; break; case '6': binary = "0110"; break; case '7': binary = "0111"; break; case '8': binary = "1000"; break; case '9': binary = "1001"; break; case 'a': binary = "1010"; break; case 'b': binary = "1011"; break; case 'c': binary = "1100"; break; case 'd': binary = "1101"; break; case 'e': binary = "1110"; break; case 'f': binary = "1111"; break; case 'A': binary = "1010"; break; case 'B': binary = "1011"; break; case 'C': binary = "1100"; break; case 'D': binary = "1101"; break; case 'E': binary = "1110"; break; case 'F': binary = "1111"; break; default: break; } return binary; } //8进制转化为2进制，输入为一个Char public static string OctToBinary(char oct) { string binary = ""; switch (oct) { case '0': binary = "000"; break; case '1': binary = "001"; break; case '2': binary = "010"; break; case '3': binary = "011"; break; case '4': binary = "100"; break; case '5': binary = "101"; break; case '6': binary = "110"; break; case '7': binary = "111"; break; default: break; } return binary; } /// /// 32位binary2Hex /// /// /// Scanner.cs，扫描器实现
using System;using System.Collections.Generic;using System.Globalization;using System.IO;using System.Linq;using System.Text;namespace AssembleHelper{ public class Scanner { StreamReader StreamReader; public string CurrentString; public string[] OpNums = new string[]{ }; public string OpType = ""; public int innerLine = 0; //忽略空格 public int Line = 0; //不忽略空格 public bool IsData = true; public Scanner(string code, bool isData = true) { StreamReader = File.OpenText(code); IsData = isData; } public void ResetLine() { innerLine = 0; Line = 0; } public void ScanLine() { CurrentString = StreamReader.ReadLine(); if (CurrentString == null) { return; } //删除空行 CurrentString = CurrentString.Trim(); while (CurrentString.Length == 0) { Line++; CurrentString = StreamReader.ReadLine(); if (CurrentString == null) { return; } CurrentString = CurrentString.Trim(); } //删除整行注释 while (CurrentString.Trim().StartsWith('#')) { CurrentString = StreamReader.ReadLine(); } //删除空行 CurrentString = CurrentString.Trim(); while (CurrentString.Length == 0) { Line++; CurrentString = StreamReader.ReadLine(); if (CurrentString == null) { return; } CurrentString = CurrentString.Trim(); } //扫描文本 if (!IsData) { if (!CurrentString.Contains(":")) innerLine++; //是标号行数不变 } //扫描数据 Line++; //删除一行里面的注释 List currentStringList = CurrentString.ToList(); int firstAnnotation = currentStringList.FindIndex(s => { return s == '#'; }); if (firstAnnotation != -1) { CurrentString = CurrentString.Substring(0, firstAnnotation); //删除注释 } Console.WriteLine(CurrentString + ": " + ConvertHelper.ConvertIntegerToHex((innerLine * 4 | 0x0040000).ToString())); try { int firstSpace = currentStringList.FindIndex(s => { return s == ' '; }); string opType = CurrentString.Substring(0, firstSpace); string opNum = CurrentString.Substring(firstSpace).Trim(); //切割 string[] opNums = opNum.Split(","); for (int i = 0; i < opNums.Length; i++) { opNums[i] = opNums[i].Trim(); } OpNums = opNums; OpType = opType; if (!OpNums[1].Contains("$") && ((CurrentString.Contains("sw") || CurrentString.Contains("lw")))) { innerLine++; //拆成两行 } if ((opType.ToLower() == (Instrcution.andi).ToString() || (opType.ToLower() == (Instrcution.addi).ToString() || (opType.ToLower() == (Instrcution.addiu).ToString() || (opType.ToLower() == (Instrcution.ori).ToString() || (opType.ToLower() == (Instrcution.sltiu).ToString())))))) { string immHex = ConvertHelper.ConvertIntegerToHex(opNums[2]); //immHex > 0xFFFF; // FFFF0000 <= immHex <= FFFFFFFF // 00000000 <= immHex <= 0000EFFF if ((immHex.CompareTo("FFFF0000") >= 0 && (immHex.CompareTo("FFFFFFFF") <= 0) || (immHex.CompareTo("00000000") >= 0 && (immHex.CompareTo("0000FFFF") <= 0)))) { //合法 } else { innerLine += 2; //拆成三行 } } } catch(Exception ex) { } //Console.WriteLine(innerLine); } }} InsturctionTranslator.cs，指令翻译
using System;using System.Collections.Generic;using System.IO;using System.Linq;using System.Net.Sockets;using System.Text;namespace AssembleHelper{ public class InstructionTranslator { Scanner Scanner; FileStream DataFileStream; //数据段16进制码 FileStream TextFileStream; //代码段16进制码 FileStream TextSegCodeStream; //代码段代码 Dictionary SymbolTable = new Dictionary (); Dictionary LabelTable = new Dictionary (); const string DataTxt = "G:\\ComputerHardWare\\AssembleHelper\\AssembleHelper\\data.txt"; const string TextTxt = "G:\\ComputerHardWare\\AssembleHelper\\AssembleHelper\\text.txt"; const string TextSegCode = "G:\\ComputerHardWare\\AssembleHelper\\AssembleHelper\\textSeg.txt"; string Buffer = ""; public InstructionTranslator(string code) { Scanner = new Scanner(code, true); DataFileStream = new FileStream(DataTxt, FileMode.Create, FileAccess.Write);//创建写入文件 TextFileStream = new FileStream(TextTxt, FileMode.Create, FileAccess.Write);//创建写入文件 TextSegCodeStream = new FileStream(TextSegCode, FileMode.Create, FileAccess.Write);//创建写入文件 } public void Translate() { Scanner.ScanLine(); Console.WriteLine("---data---"); if (Scanner.CurrentString.Contains(".data")) { BuildSymbolTable(); } Console.WriteLine("---label---"); BuildLabelTable(); Console.WriteLine("---Transdata---"); TranslateData(); Console.WriteLine("---Transtext---"); TranslateText(); } bool isByte = false; private void TranslateData() { using (StreamWriter sw = new StreamWriter(DataFileStream)) { int currentAddr = 0; foreach (KeyValuePair var in SymbolTable) { if (isByte == false) { if (var.Value.Type == BaseType.BYTE) { var.Value.Addr = "0x" + Convert.ToString(currentAddr | 0x10010000, 16); currentAddr += 1; if (var.Value.InitVal != null) Buffer = Buffer.Insert(0, var.Value.InitVal.Substring(var.Value.InitVal.Length - 2, 2)); isByte = true; } else { var.Value.Addr = "0x" + Convert.ToString(currentAddr | 0x10010000, 16); currentAddr += 4; sw.WriteLine(var.Value.InitVal); } } else { if (var.Value.Type == BaseType.BYTE) { var.Value.Addr = "0x" + Convert.ToString(currentAddr | 0x10010000, 16); currentAddr += 1; if (var.Value.InitVal != null) Buffer = Buffer.Insert(0, var.Value.InitVal.Substring(var.Value.InitVal.Length - 2, 2)); } else { isByte = false; //在这里先写Buffer的值 if (Buffer != "") { string data = ""; while (Buffer.Length % 8 != 0) { Buffer = Buffer.Insert(0, "0"); } int i = Buffer.Length - 8; while (i >= 0) { data = Buffer.Substring(i, 8); sw.WriteLine(data); i -= 8; } } var.Value.Addr = "0x" + Convert.ToString(currentAddr | 0x10010000, 16); currentAddr += 4; sw.WriteLine(var.Value.InitVal); Buffer = ""; } } } } } private void TranslateText() { using (StreamWriter sw = new StreamWriter(TextFileStream)) { Scanner = new Scanner(TextSegCode, false); Scanner.ScanLine(); while (true) { //string[] instruction = Scanner.CurrentString.Split(","); /*List currentStringList = Scanner.CurrentString.ToList(); int firstSpace = currentStringList.FindIndex(s => { return s == ' '; }); string opType = Scanner.CurrentString.Substring(0, firstSpace); string opNum = Scanner.CurrentString.Substring(firstSpace).Trim(); //切割 string[] opNums = opNum.Split(","); for (int i = 0; i < opNums.Length; i++) { opNums[i] = opNums[i].Trim(); }*/ string opType = Scanner.OpType; string[] opNums = Scanner.OpNums; string hexCode = ""; //如果是sw，lw，而且尾巴是Ident的形式 if((opType.ToLower() == (Instrcution.sw).ToString() || opType.ToLower() == (Instrcution.lw).ToString())&& SymbolTable.ContainsKey(opNums[1])) { //lui $1, 0x00001001 sw.WriteLine("3c011001"); opNums[1] = SymbolTable[opNums[1]].Addr + "($1)"; } else if((opType.ToLower() == (Instrcution.andi).ToString()|| (opType.ToLower() == (Instrcution.addi).ToString() || (opType.ToLower() == (Instrcution.addiu).ToString() || (opType.ToLower() == (Instrcution.ori).ToString() || (opType.ToLower() == (Instrcution.sltiu).ToString())))))) { string originalOpType = opType; string[] originalOpNums = opNums; string immHex = ConvertHelper.ConvertIntegerToHex(opNums[2]); if ((immHex.CompareTo("FFFF0000") >= 0 && (immHex.CompareTo("FFFFFFFF") <= 0) || (immHex.CompareTo("00000000") >= 0 && (immHex.CompareTo("0000FFFF") <= 0)))) { //合法 } else { //lui $1, immHex.upper opType = "lui"; opNums = new string[] { "$1", "0x" + immHex.Substring(0, 4) }; hexCode = TranslateSentence(opType, opNums); sw.WriteLine(hexCode); //ori $1, $1, immHex.low opType = "ori"; opNums = new string[] { "$1", "$1", "0x" + immHex.Substring(4, 4) }; hexCode = TranslateSentence(opType, opNums); sw.WriteLine(hexCode); if (originalOpType.ToLower() == (Instrcution.andi).ToString()) { opType = "and"; } else if (originalOpType.ToLower() == (Instrcution.addi).ToString()) { opType = "add"; } else if (originalOpType.ToLower() == (Instrcution.addiu).ToString()) { opType = "add"; } else if (originalOpType.ToLower() == (Instrcution.ori).ToString()) { opType = "or"; } else if (originalOpType.ToLower() == (Instrcution.sltiu).ToString()) { opType = "slt"; } opNums = originalOpNums; opNums[2] = "$1"; } } hexCode = TranslateSentence(opType, opNums); sw.WriteLine(hexCode); Scanner.ScanLine(); if (Scanner.CurrentString == null) { break; } } } } private void BuildLabelTable() { using(StreamWriter sw = new StreamWriter(TextSegCodeStream)) { //Scanner.ScanLine(); if (Scanner.CurrentString.StartsWith(".text")) { Scanner.ScanLine(); } Scanner.IsData = false; while (true) { if (Scanner.CurrentString.Contains(":")) { InsertLabel(Scanner.CurrentString); } else { sw.WriteLine(Scanner.CurrentString); } Scanner.ScanLine(); if (Scanner.CurrentString == null) { break; } } } } private void InsertLabel(string currentString) { string[] cutSentence = currentString.Split(":"); string labelName = cutSentence[0]; int decAddr = (Scanner.innerLine + 1) * 4; decAddr |= 0x00400000; string labelAddr = ConvertHelper.ConvertIntegerToHex(decAddr.ToString()); labelAddr = labelAddr.Insert(0, "0x"); Label label = new Label { Name = labelName, Address = labelAddr }; LabelTable.Add(labelName, label); } private void BuildSymbolTable() { Scanner.ScanLine(); while(true) { //Console.WriteLine(Scanner.CurrentString + " 去除了空格后行数：" + Scanner.innerLine + " 原本的行数：" + Scanner.Line); InsertVar(Scanner.CurrentString); Scanner.ScanLine(); if (Scanner.CurrentString == null || Scanner.CurrentString.StartsWith(".text")) { break; } } } private void InsertVar(string currentString) { //awd:.word 12312 //awd:.word string[] varDecl = currentString.Split(":"); string varName = varDecl[0]; string[] initSentence = varDecl[1].Split(" "); bool isInit = initSentence.Length == 1 ? false : true; if (isInit) { Var var = new Var { Name = varName, InitVal = ConvertHelper.ConvertIntegerToHex(initSentence[1]), Type = ConvertStringToType(initSentence[0]), }; SymbolTable.Add(varName, var); } else { Var var = new Var { Name = varName, Type = ConvertStringToType(initSentence[0]), }; SymbolTable.Add(varName, var); } } public void GetTable() { foreach (KeyValuePair var in SymbolTable) { Console.WriteLine("变量：{0} .{1},初始值：{2},地址：{3}", var.Key, var.Value.Type.ToString(), var.Value.InitVal == "" ? "" : var.Value.InitVal, var.Value.Addr); } Console.WriteLine("---------------------------"); foreach (KeyValuePair label in LabelTable) { Console.WriteLine("标号：{0} ,地址：{1}", label.Key, label.Value.Address); } } private BaseType ConvertStringToType(string s) { if ((s.ToLower()).Contains(".word")) { return BaseType.WORD; } else if((s.ToLower()).Contains(".byte")) { return BaseType.BYTE; } return BaseType.BYTE; } private string TranslateSentence(string opType, string[] opNums) { string hex = ""; if (opType.ToLower() == (Instrcution.add).ToString()) { string func = "100000"; hex = BaseRTypeCodeTranslation(opNums,func); } else if(opType.ToLower() == (Instrcution.addu).ToString()) { string func = "100001"; hex = BaseRTypeCodeTranslation(opNums, func); } else if (opType.ToLower() == (Instrcution.sub).ToString()) { string func = "100010"; hex = BaseRTypeCodeTranslation(opNums, func); } else if (opType.ToLower() == (Instrcution.subu).ToString()) { string func = "100011"; hex = BaseRTypeCodeTranslation(opNums, func); } else if (opType.ToLower() == (Instrcution.and).ToString()) { string func = "100100"; hex = BaseRTypeCodeTranslation(opNums, func); } else if (opType.ToLower() == (Instrcution.or).ToString()) { string func = "100101"; hex = BaseRTypeCodeTranslation(opNums, func); } else if (opType.ToLower() == (Instrcution.xor).ToString()) { string func = "100110"; hex = BaseRTypeCodeTranslation(opNums, func); } else if (opType.ToLower() == (Instrcution.nor).ToString()) { string func = "100111"; hex = BaseRTypeCodeTranslation(opNums, func); } else if (opType.ToLower() == (Instrcution.slt).ToString()) { string func = "101010"; hex = BaseRTypeCodeTranslation(opNums, func); } else if (opType.ToLower() == (Instrcution.sltu).ToString()) { string func = "101011"; hex = BaseRTypeCodeTranslation(opNums, func); } else if (opType.ToLower() == (Instrcution.sll).ToString()) { string rs = "00000"; string op = "000000"; string rt = TranslateRegisterToRegCode(opNums[1]); string rd = TranslateRegisterToRegCode(opNums[0]); string shamtHex = ConvertHelper.ConvertIntegerToHex( opNums[2]); string shamtBinary = ""; string func = "000000"; for(int i = shamtHex.Length - 1; i >= 0; i--) { shamtBinary = shamtBinary.Insert(0, ConvertHelper.HexToBinary(shamtHex[i])); } hex = ConvertHelper.BinaryToHex(op + rs + rt + rd + shamtBinary.Substring(27) + func); } else if (opType.ToLower() == (Instrcution.srl).ToString()) { string rs = "00000"; string op = "000000"; string rt = TranslateRegisterToRegCode(opNums[1]); string rd = TranslateRegisterToRegCode(opNums[0]); string shamtHex = ConvertHelper.ConvertIntegerToHex(opNums[2]); string shamtBinary = ""; string func = "000010"; for (int i = shamtHex.Length - 1; i >= 0; i--) { shamtBinary = shamtBinary.Insert(0, ConvertHelper.HexToBinary(shamtHex[i])); } hex = ConvertHelper.BinaryToHex(op + rs + rt + rd + shamtBinary.Substring(27) + func); } else if (opType.ToLower() == (Instrcution.sra).ToString()) { string rs = "00000"; string op = "000000"; string rt = TranslateRegisterToRegCode(opNums[1]); string rd = TranslateRegisterToRegCode(opNums[0]); string shamtHex = ConvertHelper.ConvertIntegerToHex(opNums[2]); string shamtBinary = ""; string func = "000011"; for (int i = shamtHex.Length - 1; i >= 0; i--) { shamtBinary = shamtBinary.Insert(0, ConvertHelper.HexToBinary(shamtHex[i])); } hex = ConvertHelper.BinaryToHex(op + rs + rt + rd + shamtBinary.Substring(27) + func); } else if (opType.ToLower() == (Instrcution.sllv).ToString()) { string func = "000100"; hex = BaseRTypeCodeTranslation(opNums, func); } else if (opType.ToLower() == (Instrcution.srlv).ToString()) { string func = "000110"; hex = BaseRTypeCodeTranslation(opNums, func); } else if (opType.ToLower() == (Instrcution.srav).ToString()) { string func = "000111"; hex = BaseRTypeCodeTranslation(opNums, func); } else if (opType.ToLower() == (Instrcution.jr).ToString()) { string func = "001000"; string op = "000000"; string rt = "00000"; string rd = rt; string shamt = rt; string rs = TranslateReg(opNums[0]); hex = ConvertHelper.BinaryToHex(op + rs + rt + rd + shamt + func); } else if (opType.ToLower() == (Instrcution.addi).ToString()) { string op = "001000"; hex = BaseITypeCodeTranslation(opNums, op); } else if (opType.ToLower() == (Instrcution.addiu).ToString()) { string op = "001001"; hex = BaseITypeCodeTranslation(opNums, op); } else if (opType.ToLower() == (Instrcution.andi).ToString()) { string op = "001100"; hex = BaseITypeCodeTranslation(opNums, op); } else if (opType.ToLower() == (Instrcution.ori).ToString()) { string op = "001101"; hex = BaseITypeCodeTranslation(opNums, op); } else if (opType.ToLower() == (Instrcution.xori).ToString()) { string op = "001101"; hex = BaseITypeCodeTranslation(opNums, op); } else if (opType.ToLower() == (Instrcution.sltiu).ToString()) { string op = "001110"; hex = BaseITypeCodeTranslation(opNums, op); } else if (opType.ToLower() == (Instrcution.lui).ToString()) { string op = "001111"; string rs = "00000"; string rt = TranslateReg(opNums[0]); string immHex = ConvertHelper.ConvertIntegerToHex(opNums[1]); string immBinary = ""; for (int i = immHex.Length - 1; i >= 0; i--) { if (immBinary.Length == 16) { break; } else { immBinary = immBinary.Insert(0, ConvertHelper.HexToBinary(immHex[i])); } } hex = ConvertHelper.BinaryToHex(op + rs + rt + immBinary); } else if (opType.ToLower() == (Instrcution.lw).ToString()) { string op = "100011"; string rt = TranslateReg(opNums[0]); string[] offsets = opNums[1].Split("("); for(int i = 0; i < offsets.Length; i++) { offsets[i] = offsets[i].Trim(); } string immHex = ConvertHelper.ConvertIntegerToHex(offsets[0]); string immBinary = ""; for(int i = immHex.Length - 1; i >= 0; i--) { if(immBinary.Length == 16) { break; } else immBinary = immBinary.Insert(0, ConvertHelper.HexToBinary(immHex[i])); } string[] reg2 = offsets[1].Split(")"); string rs = TranslateReg(reg2[0]); hex = ConvertHelper.BinaryToHex(op + rs + rt + immBinary); } else if (opType.ToLower() == (Instrcution.sw).ToString()) { string op = "101011"; string rt = TranslateReg(opNums[0]); string[] offsets = opNums[1].Split("("); for (int i = 0; i < offsets.Length; i++) { offsets[i] = offsets[i].Trim(); } string immHex = ConvertHelper.ConvertIntegerToHex(offsets[0]); string immBinary = ""; for (int i = immHex.Length - 1; i >= 0; i--) { if (immBinary.Length == 16) { break; } else immBinary = immBinary.Insert(0, ConvertHelper.HexToBinary(immHex[i])); } string[] reg2 = offsets[1].Split(")"); string rs = TranslateReg(reg2[0]); hex = ConvertHelper.BinaryToHex(op + rs + rt + immBinary); } else if (opType.ToLower() == (Instrcution.beq).ToString()) { string op = "000100"; string rs = TranslateReg(opNums[0]); string rt = TranslateReg(opNums[1]); if(!LabelTable.ContainsKey(opNums[2])) { string immHex = ConvertHelper.ConvertIntegerToHex(opNums[2]); string immBinary = ""; for (int i = immHex.Length - 1; i >= 0; i--) { if (immBinary.Length == 16) { break; } else { immBinary = immBinary.Insert(0, ConvertHelper.HexToBinary(immHex[i])); } } hex = ConvertHelper.BinaryToHex(op + rs + rt + immBinary); } else { string immHex = ConvertHelper.ConvertIntegerToHex(LabelTable[opNums[2]].Address); string immBinary = ""; for (int i = immHex.Length - 1; i >= 0; i--) { immBinary = immBinary.Insert(0, ConvertHelper.HexToBinary(immHex[i])); } //下一条指令 string nextAddrHex = ConvertHelper.ConvertIntegerToHex(((Scanner.innerLine) * 4 | 0x00400000 ).ToString()); string nextAddrBinary = ""; for(int i = nextAddrHex.Length - 1; i >= 0; i--) { nextAddrBinary = nextAddrBinary.Insert(0, ConvertHelper.HexToBinary(nextAddrHex[i])); } //immBinary - currentAddrBinary nextAddrBinary = ConvertHelper.ReverseBinary(nextAddrBinary); long immByte = Convert.ToInt64(immBinary, 2); long currentByte = Convert.ToInt64(nextAddrBinary, 2); long actualAddr = (immByte + currentByte) / 4; string actualAddrHex= ConvertHelper.ConvertIntegerToHex(actualAddr.ToString()); string actualAddrBinary = ""; for (int i = actualAddrHex.Length - 1; i >= 0; i--) { if(actualAddrBinary.Length == 16) { break; } else actualAddrBinary = actualAddrBinary.Insert(0, ConvertHelper.HexToBinary(actualAddrHex[i])); } hex = ConvertHelper.BinaryToHex(op + rs + rt + actualAddrBinary); } } else if (opType.ToLower() == (Instrcution.bne).ToString()) { string op = "000101"; string rs = TranslateReg(opNums[0]); string rt = TranslateReg(opNums[1]); if (!LabelTable.ContainsKey(opNums[2])) { string immHex = ConvertHelper.ConvertIntegerToHex(opNums[2]); string immBinary = ""; for (int i = immHex.Length - 1; i >= 0; i--) { if (immBinary.Length == 16) { break; } else { immBinary = immBinary.Insert(0, ConvertHelper.HexToBinary(immHex[i])); } } hex = ConvertHelper.BinaryToHex(op + rs + rt + immBinary); } else { string immHex = ConvertHelper.ConvertIntegerToHex(LabelTable[opNums[2]].Address); string immBinary = ""; for (int i = immHex.Length - 1; i >= 0; i--) { immBinary = immBinary.Insert(0, ConvertHelper.HexToBinary(immHex[i])); } string currentAddrHex = ConvertHelper.ConvertIntegerToHex((((Scanner.innerLine - 1) * 4) | 0x00400000).ToString()); string currentAddrBinary = ""; for (int i = currentAddrHex.Length - 1; i >= 0; i--) { currentAddrBinary = currentAddrBinary.Insert(0, ConvertHelper.HexToBinary(currentAddrHex[i])); } //currentAddrBinary - immBinary immBinary = ConvertHelper.ReverseBinary(immBinary); byte immByte = Convert.ToByte(immBinary, 2); byte currentByte = Convert.ToByte(currentAddrBinary, 2); int actualAddr = immByte + currentByte; string actualAddrHex = ConvertHelper.ConvertIntegerToHex(actualAddr.ToString()); string actualAddrBinary = ""; for (int i = actualAddrHex.Length - 1; i >= 0; i--) { if (actualAddrBinary.Length == 16) { break; } else actualAddrBinary = actualAddrBinary.Insert(0, ConvertHelper.HexToBinary(actualAddrHex[i])); } hex = ConvertHelper.BinaryToHex(op + rs + rt + actualAddrBinary); } } else if (opType.ToLower() == (Instrcution.bgtz).ToString()) { string op = "000111"; string rs = TranslateReg(opNums[0]); string rt = "00000"; if(!LabelTable.ContainsKey(opNums[1])) { string immHex = ConvertHelper.ConvertIntegerToHex(opNums[1]); string immBinary = ""; for (int i = immHex.Length - 1; i >= 0; i--) { if (immBinary.Length == 16) { break; } else { immBinary = immBinary.Insert(0, ConvertHelper.HexToBinary(immHex[i])); } } hex = ConvertHelper.BinaryToHex(op + rs + rt + immBinary); } else { string immHex = ConvertHelper.ConvertIntegerToHex(LabelTable[opNums[1]].Address); string immBinary = ""; for (int i = immHex.Length - 1; i >= 0; i--) { immBinary = immBinary.Insert(0, ConvertHelper.HexToBinary(immHex[i])); } string currentAddrHex = ConvertHelper.ConvertIntegerToHex((((Scanner.innerLine - 1) * 4) | 0x00400000).ToString()); string currentAddrBinary = ""; for (int i = currentAddrHex.Length - 1; i >= 0; i--) { currentAddrBinary = currentAddrBinary.Insert(0, ConvertHelper.HexToBinary(currentAddrHex[i])); } //currentAddrBinary - immBinary immBinary = ConvertHelper.ReverseBinary(immBinary); byte immByte = Convert.ToByte(immBinary, 2); byte currentByte = Convert.ToByte(currentAddrBinary, 2); int actualAddr = immByte + currentByte; string actualAddrHex = ConvertHelper.ConvertIntegerToHex(actualAddr.ToString()); string actualAddrBinary = ""; for (int i = actualAddrHex.Length - 1; i >= 0; i--) { if (actualAddrBinary.Length == 16) { break; } else actualAddrBinary.Insert(0, ConvertHelper.HexToBinary(actualAddrHex[i])); } hex = ConvertHelper.BinaryToHex(op + rs + rt + actualAddrBinary); } } else if (opType.ToLower() == (Instrcution.j).ToString()) { string op = "000010"; if (!LabelTable.ContainsKey(opNums[0])) { string immHex = ConvertHelper.ConvertIntegerToHex(opNums[0]); string immBinary = ""; for (int i = immHex.Length - 1; i >= 0; i--) { if (immBinary.Length == 26) { break; } else { immBinary = immBinary.Insert(0, ConvertHelper.HexToBinary(immHex[i])); } } hex = ConvertHelper.BinaryToHex(op + immBinary); } else { string immHex = ConvertHelper.ConvertIntegerToHex(LabelTable[opNums[0]].Address); string immBinary = ""; for (int i = immHex.Length - 1; i >= 0; i--) { immBinary = immBinary.Insert(0, ConvertHelper.HexToBinary(immHex[i])); } hex = ConvertHelper.BinaryToHex(op + immBinary.Substring(4,26)); } } else if (opType.ToLower() == (Instrcution.jal).ToString()) { string op = "000011"; if (!LabelTable.ContainsKey(opNums[0])) { string immHex = ConvertHelper.ConvertIntegerToHex(opNums[0]); string immBinary = ""; for (int i = immHex.Length - 1; i >= 0; i--) { if (immBinary.Length == 26) { break; } else { immBinary = immBinary.Insert(0, ConvertHelper.HexToBinary(immHex[i])); } } hex = ConvertHelper.BinaryToHex(op + immBinary); } else { string immHex = ConvertHelper.ConvertIntegerToHex(LabelTable[opNums[0]].Address); string immBinary = ""; for (int i = immHex.Length - 1; i >= 0; i--) { immBinary = immBinary.Insert(0, ConvertHelper.HexToBinary(immHex[i])); } hex = ConvertHelper.BinaryToHex(op + immBinary.Substring(4, 26)); } } return hex; } private string BaseITypeCodeTranslation(string[] opNums, string op) { string hex = ""; string rs = TranslateReg(opNums[1]); string rt = TranslateReg(opNums[0]); string immHex = ConvertHelper.ConvertIntegerToHex(opNums[2]); string immBinary = ""; for(int i = immHex.Length - 1; i >= 0; i--) { if(immBinary.Length == 16) { break; } else { immBinary = immBinary.Insert(0, ConvertHelper.HexToBinary(immHex[i])); } } hex = ConvertHelper.BinaryToHex(op + rs + rt + immBinary); return hex; } private string BaseRTypeCodeTranslation(string[] opNums, string func) { string hex = ""; string rs = TranslateReg(opNums[1]); string rt = TranslateReg(opNums[2]); string rd = TranslateReg(opNums[0]); string op = "000000"; string shamt = "00000"; hex = ConvertHelper.BinaryToHex(op + rs + rt + rd + shamt + func); return hex; } #region 翻译Reg private string TranslateReg(string reg) { string regCode = ""; //$xn string register = reg.Substring(1); //xn regCode = TranslateRegisterToRegCode(register); return regCode; } private string TranslateRegisterToRegCode(string register) { string regCode = ""; if (register.Contains(Register.zero.ToString()) || register == "0") { regCode = "00000"; } else if (register.Contains(Register.at.ToString()) || register == "1") { regCode = "00001"; } else if (register.Contains(Register.v0.ToString()) || register == "2") { regCode = "00010"; } else if (register.Contains(Register.v1.ToString()) || register == "3") { regCode = "00011"; } else if (register.Contains(Register.a0.ToString()) || register == "4") { regCode = "00100"; } else if (register.Contains(Register.a1.ToString()) || register == "5") { regCode = "00101"; } else if (register.Contains(Register.a2.ToString()) || register == "6") { regCode = "00110"; } else if (register.Contains(Register.a3.ToString()) || register == "7") { regCode = "00111"; } else if (register.Contains(Register.t0.ToString())|| register == "8") { regCode = "01000"; } else if (register.Contains(Register.t1.ToString()) || register == "9") { regCode = "01001"; } else if (register.Contains(Register.t2.ToString()) || register == "10") { regCode = "01010"; } else if (register.Contains(Register.t3.ToString()) || register == "11") { regCode = "01011"; } else if (register.Contains(Register.t4.ToString()) || register == "12") { regCode = "01100"; } else if (register.Contains(Register.t5.ToString()) || register == "13") { regCode = "01101"; } else if (register.Contains(Register.t6.ToString()) || register == "14") { regCode = "01110"; } else if (register.Contains(Register.t7.ToString()) || register == "15") { regCode = "01111"; } else if (register.Contains(Register.s0.ToString()) || register == "16") { regCode = "10000"; } else if (register.Contains(Register.s1.ToString()) || register == "17") { regCode = "10001"; } else if (register.Contains(Register.s2.ToString()) || register == "18") { regCode = "10010"; } else if (register.Contains(Register.s3.ToString()) || register == "19") { regCode = "10011"; } else if (register.Contains(Register.s4.ToString()) || register == "20") { regCode = "10100"; } else if (register.Contains(Register.s5.ToString()) || register == "21") { regCode = "10101"; } else if (register.Contains(Register.s6.ToString()) || register == "22") { regCode = "10110"; } else if (register.Contains(Register.s7.ToString()) || register == "23") { regCode = "10111"; } else if (register.Contains(Register.t8.ToString()) || register == "24") { regCode = "11000"; } else if (register.Contains(Register.t9.ToString()) || register == "25") { regCode = "11001"; } else if (register.Contains(Register.k0.ToString()) || register == "26") { regCode = "11010"; } else if (register.Contains(Register.k1.ToString()) || register == "27") { regCode = "11011"; } else if (register.Contains(Register.gp.ToString()) || register == "28") { regCode = "11100"; } else if (register.Contains(Register.sp.ToString()) || register == "29") { regCode = "11101"; } else if (register.Contains(Register.fp.ToString()) || register == "30") { regCode = "11110"; } else if (register.Contains(Register.ra.ToString()) || register == "31") { regCode = "11111"; } return regCode; } #endregion }} Program.cs
using System;namespace AssembleHelper{ class Program { static void Main(string[] args) { InstructionTranslator instructionTranslator = new InstructionTranslator("G:\\ComputerHardWare\\AssembleHelper\\AssembleHelper\\source_code.txt"); instructionTranslator.Translate(); instructionTranslator.GetTable(); } }} source_code.txt 测试
#版本2：新增时控函数，由变量timer决定每个灯泡亮的间隔#版本3：增加处理函数，函数中调用其他函数需要保存$ra寄存器，为了方便，就不在函数中调用函数了.data mode:.word 0x00000000#点灯模式，21~23位开关作为模式选择开关 count:.word 0x00000834 #每个模式运行2100次，2100次过后可以切换为当前选定模式 timer:.word 0x00000001 #实际赫兹为500hz，半秒对应于运行250次；事实上，并不准确，运行速度较慢，可以进一步改小timer；经实验，当timer=1时，效果最佳 mode1:.word 0x00000020 mode2:.word 0x00000040 mode3:.word 0x00000080 mode1_init_rstate:.word 0x00000FFF #模式1，初始右灯状态 mode1_init_lstate:.word 0xFFF00000 #模式1， 初始左灯状态 mode2_init_light_state:.word 0xFF000000 #模式2，初始亮灯状态 mode2_init_dark_state:.word 0x00FFFFFF # 模式2，初始暗灯状态 mode3_input_X:.word 0x00000000 #模式3，低16位输入的X， temp:.word 0x00000000 t1:.word 0x00000000 t2:.word 0x00000000.textlui $1,0xFFFF #0 let $28 = 0xFFFF0000 as the upper 16 bits of the port addressori $28,$1,0xF000 #4 $28 port is the upper 20 bits of the system's I/O addressmain_loop: lw $1,0xC72($28) #8 读高8位开关数据 t1=xxxx_xxxx_xxxx_xxxx_xxxx_xxxx_sw23,sw22,sw21,x_xxxx andi $t1, $1, 0x000000E0 #c 屏蔽其他位 t1=0000_0000_0000_0000_0000_0000_sw23,sw22,sw21,0_0000 sw $t1, mode #14 保存选项 mode = t1 lw $t2, mode1 #1c lw $t3, mode2 #24 lw $t4, mode3 #2c beq $t1,$t2,mode_mode1 #30 if mode == mode1, go mode_mode1 beq $t1,$t3,mode_mode2 #34 if mode == mode2, go mode_mode2 beq $t1,$t4,mode_mode3 #38 if mode == mode3, go mode_mode3 j main_loop #3c else keep loop#=================================mode1============================= mode_mode1: mode1_init: lw $s3, count #40 初始化s3 为counter,2100次后结束mode1 lw $s4, mode1_init_rstate #初始化s4右灯泡状态 lw $s5, mode1_init_lstate #初始化s5左灯泡状态 addi $s6, $0, 0x00FFF000 # 初始化s6为右全亮状态 addi $s7, $0, 0x000FFF00 # 初始化s7为左全亮状态 mode1_start_light: beq $s3,$0,mode1_end #2100次结束,if counter == 0, go mode1_end beq $s4, $s6, mode1_start_dark #说明灯已全亮，该熄灭了 mode1_light: sll $s4,$s4,1 #右灯泡向左移，亮一个 srl $s5,$s5,1 #左灯泡向右移，亮一个 jal model1_processor #call model1_processor，调用模式1处理函数 jal start_timer #call timer,调用计时函数 addi $s3,$s3,-1 #counter = counter -1 j mode1_start_light mode1_start_dark: beq $s3,$0,mode1_end #2100次结束,if counter == 0, go mode1_end addi $t6, $0, 0x00000FFF beq $s4, $t6, mode1_start_light # t4 = t6 = 0x00000FFF说明灯已全暗，该亮了 mode1_dark: srl $s4,$s4,1 #右灯泡向右移，灭一个 sll $s5,$s5,1 #左灯泡向左移，灭一个 jal model1_processor #call model1_processor，调用模式1处理函数 jal start_timer #call timer,调用计时函数 addi $s3,$s3,-1 #counter = counter -1 j mode1_start_dark mode1_end: j main_loop#mode1处理函数model1_processor: and $t1,$s4, $s6 # t1=s4 & s6 00XXX000 and $t2,$s5, $s7 # t2 = s5 & s7 000XXX00 srl $t1,$t1, 12 #t1 = t1<<12 00000XXX sll $t2, $t2, 4 #t2 = t2>>4 00XXX000 sw $t1, t1 sw $t2, t2 add $t3,$t1,$t2 #t3 = 00XXXXXX,为当前左右灯泡状态 sw $t3, temp andi $t1, $t3, 0x0000FFFF #t1为右LED状态 sw $t1,0xC60($28) #亮右灯 andi $t1, $t3, 0x00FF0000 #t1为左LED状态 srl $t1,$t1,16 #t1 = 000000XX sw $t1, 0xC62($28) #亮左灯 jr $ra#=================================mode2=============================mode_mode2:mode2_init: lw $s1, mode2_init_light_state #s1 = 0xFF000000,初始亮灯状态 lw $s2, mode2_init_dark_state # s2 = 0x00FFFFFF,初始熄灯状态 lw $s3, count #初始化s3 为counter,2100次后结束mode2 addi $s4,$0, 0xFFFFFFFF #s4 = 0xFFFFFFFF,灯全亮状态 addi $s5,$0, 0x00000000 #s5 = 0x00000000,灯全灭状态mode2_light: lw $s2, mode2_init_dark_state #重置熄灯状态 beq $s3, $0, mode2_end #if counter = 0, go end beq $s1, $s4, mode2_dark # 如果全亮，则说明该熄灯了,go mode2_dark sra $s1,$s1,1 #0xFFXXXXXX andi $t1, $s1, 0x00FFFFFF #t1 = s1 & 0x00FFFFFF 0x00XXXXXX jal mode2_processor #call mode2_processor，调用模式2处理函数 jal start_timer #call timer,调用计时函数 addi $s3,$s3,-1 #counter = counter -1 j mode2_light mode2_dark: lw $s1, mode2_init_light_state #重置灯亮状态 beq $s3, $0, mode2_end #if counter = 0, go end beq $s2, $s5, mode2_light # 如果全灭，则说明该亮灯了,go mode2_light srl $s2,$s2,1 #0x00XXXXXX andi $t1, $s2, 0x00FFFFFF #t1 = s1 & 0x00FFFFFF 0x00XXXXXX jal mode2_processor #call ，调用模式2处理函数 jal start_timer #call timer,调用计时函数 addi $s3,$s3,-1 #counter = counter -1 j mode2_dark mode2_end: j main_loop mode2_processor: andi $t2, $t1, 0x0000FFFF sw $t2,0xC60($28) #亮右灯 andi $t3, $t1,0x00FF0000 # t3 = 0x00XX0000 srl $t3,$t3,16 # t3 = 0x000000XX sw $t3,0xC62($28) # 亮左灯 jr $ra#=================================mode3=============================mode_mode3:mode3_init: lw $t1,0xC70($28) # 读低16位开关数据, t1 = 0x0000XXXX sw $t1, mode3_input_X #初始化X = $0000XXXX lw $s3, count #初始化s3 为counter,2100次后结束mode3 lw $s1, mode3_input_X # s1 = X mode3_start: beq $s3, $0, mode3_end #if counter = 0, go end andi $t1, $s1, 0x0000FFFF sw $t1,0xC60($28) #亮右灯 andi $t2, $s1,0x00FF0000 # t3 = 0x00XX0000 srl $t2,$t2,16 # t3 = 0x000000XX sw $t2,0xC62($28) # 亮左灯 andi $t1, $s1, 0x00000001 #t1 = s1[0] sll $t1, $t1, 23 #t1 = b 0000_0000_s1[0]000_0000_0000_0000_0000_0000 srl $s1, $s1, 1 #s1 = b 0000_0000_0xxx_xxxx_xxxx_xxxx_xxxx_xxxx add $s1, $s1, $t1# s1 = b 0000_0000_s1[0]xxx_xxxx_xxxx_xxxx_xxxx_xxxx sw $s1, temp jal start_timer #call timer,调用计时函数 addi $s3,$s3,-1 #counter = counter - 1 j mode3_start mode3_end: j main_loop#计时器函数start_timer:timer_init: lw $t8, timertimer_start: beq $t8, $0, timer_end addi $t8, $t8,-1 j timer_starttimer_end: jr $ra
